CAD Connect II USB Audio Interface
CAD Connect II USB Audio Interface
SKU:CX2
Couldn't load pickup availability
Record at home or on the go with the CAD Audio CX2 USB Audio Interface.

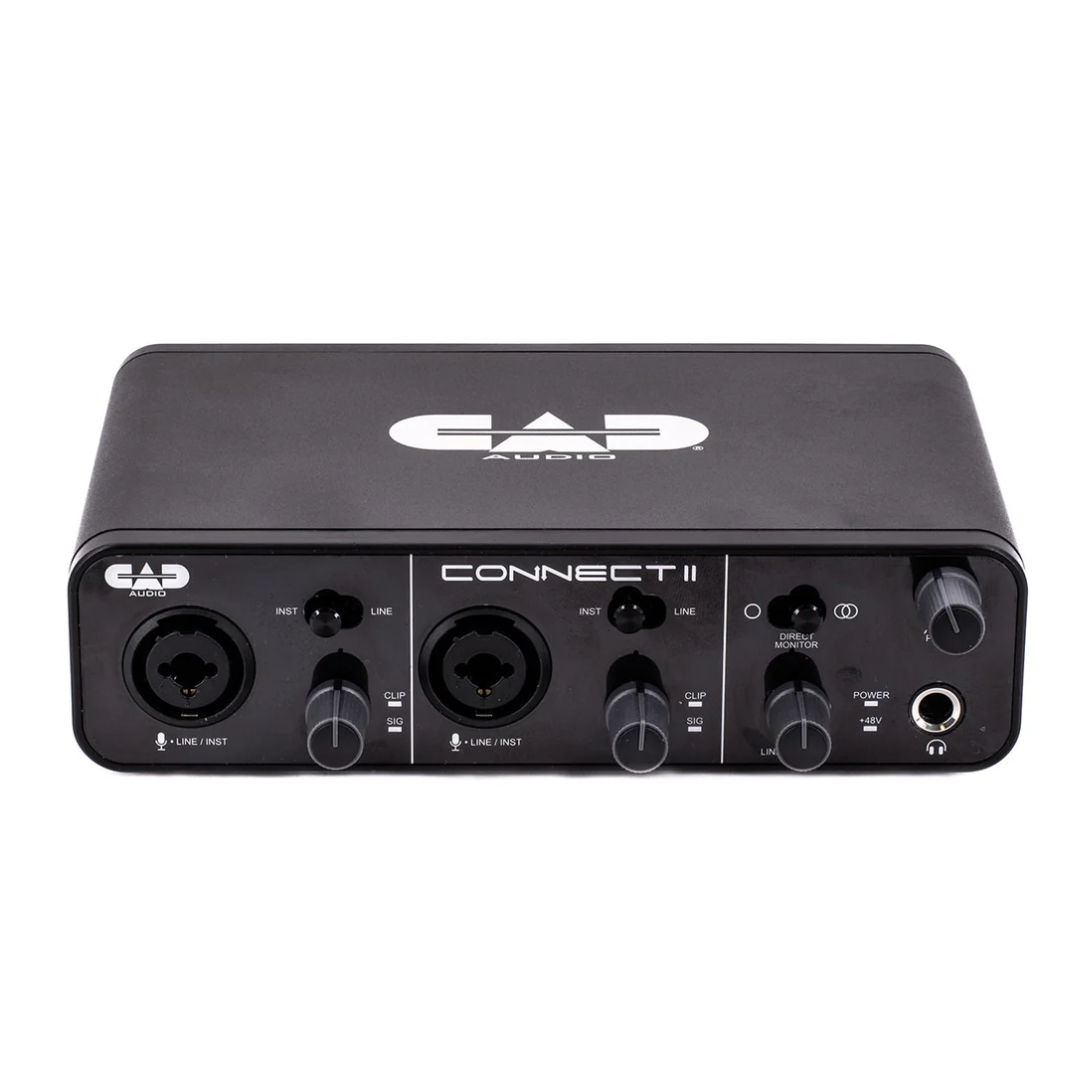

The Connect II features 2 XLR combo inputs which can accommodate either a microphone or instrument-level audio signal, making it a perfect solution for the singer/songwriter; or a vocalist with an accompanying instrumentalist.
The CX2 offers 48V phantom power and is fully USB powered, no external power source required. You’ll get high-quality professional recordings with 24-bit/96kHz digital resolution, and the rugged all-metal body is built to withstand the toughest conditions.
Features
• Value-packed 2-channel USB audio interface for home or mobile recording
• Record at professional-level 24-bit/96kHz resolution.
• Includes +48V phantom power for use with studio condenser microphones
• USB bus powered.
• Two preamps with combo inputs for recording either microphone or instrument-level audio.
• Compatible with nearly any recording software on Windows® or Macintosh® operating systems.
Specifications
Frequency Response: 20Hz – 20kHz
Resolution/Sample Rate: 24Bit/96kHz
Phantom Power: +48V
Dynamic Range: 118dBA
EIN: -110dBA
Max Input Level:
Mic: +8dBu
Instrument: +11dBu
Line: +19dBu
Input Impedance:
Mic: 3k ohms
Instrument: 1M ohms
Line: 20k ohms
Gain Range: 50dB
About CAD Audio
CAD Audio continues to build upon over 85 years of innovation and success in the audio industry delivering innovative and highly useful solutions for performers, engineers and a wide range of audio professionals.
