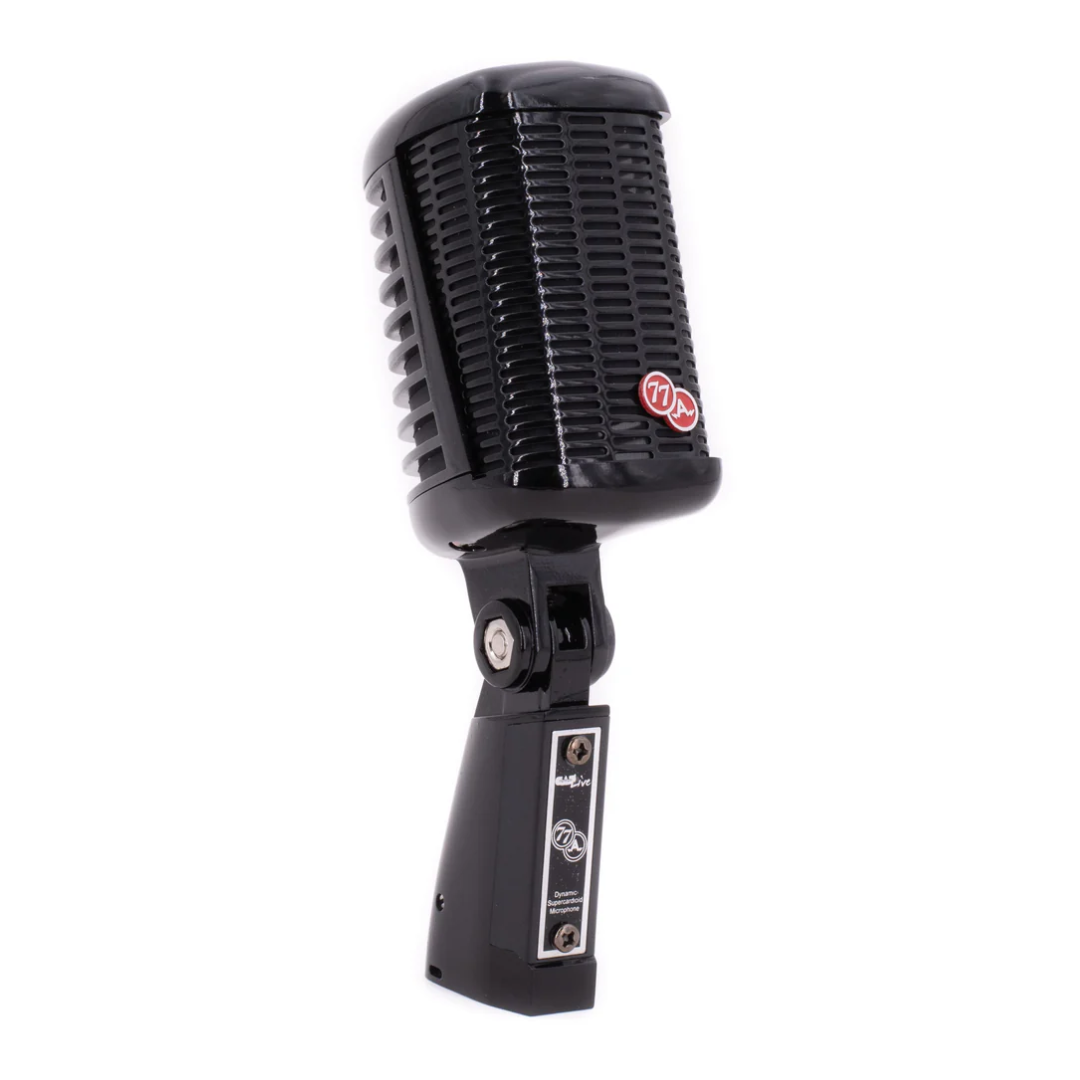

CAD Live A77 Supercardioid Large Diaphragm Dynamic Side Address Microphone ~ Gloss Black
CAD Live A77 Supercardioid Large Diaphragm Dynamic Side Address Microphone ~ Gloss Black
SKU:A77BK
Couldn't load pickup availability
In celebration of the 65th anniversary of the original Astatic A77 created in 1957, CAD Audio has released a special Midnight Black edition of the timeless original.
The A77BK features the famous styling of the original A77 (Patent #185,712) with modernised circuitry for enhanced performance.
The A77BK is a large diaphragm dynamic side address microphone equipped with a modern tribute to the original capsule - updated with a PowerGap™ high gauss magnet and a TrueFlex™ diaphragm. The update brings modern performance and results in a hot and articulate acoustic profile.
• TrueFlex™ diaphragm for articulate response
• PowerGap™ Neodymium magnet for hot signal
• Reimagined retro presentation of a classic
Applications
• Live vocals
• Studio vocals
• Acoustic Guitar
• Percussion Instruments
• Voiceover
• Broadcast /Podcast
Specifications
Operating Principle: Dynamic moving coil motor
Polar Pattern: Supercardioid
Frequency Response: 30Hz-15KHz
Sensitivity: - 48dBV (3.56mV) @ 1 Pa
Impedance: 500 ohms
Max SPL: > 150dB
Dimensions: 24.13cm x 8.26cm x 1 5.88cm (9.5" x 6.25" x 3.25")
Weight: 1.5Ibs (0. 79Kg)
RoHS: Compliant
About CAD Audio
CAD Audio continues to build upon over 85 years of innovation and success in the audio industry delivering innovative and highly useful solutions for performers, engineers and a wide range of audio professionals.
